Includes
The Epson SureColor DS series has long offered a superior production platform; developed from the ground up for Dye Sublimation, it combines superior image quality, better colour, lower running costs, and higher reliability, all backed with a comprehensive factory warranty. The F560 takes the concept further with a low-cost package that provides a total imaging solution complete with software, ink and media. Designed for custom merchandise and décor production, it is also suited to photo imaging, hard signage, and even small fabric applications. It features a compact design with flexible media support, and a Continuous Ink Supply System (CISS). Prints are made on paper which transfers (sublimates) via a heat press onto material with a polyester base or polyester pre-treatment.

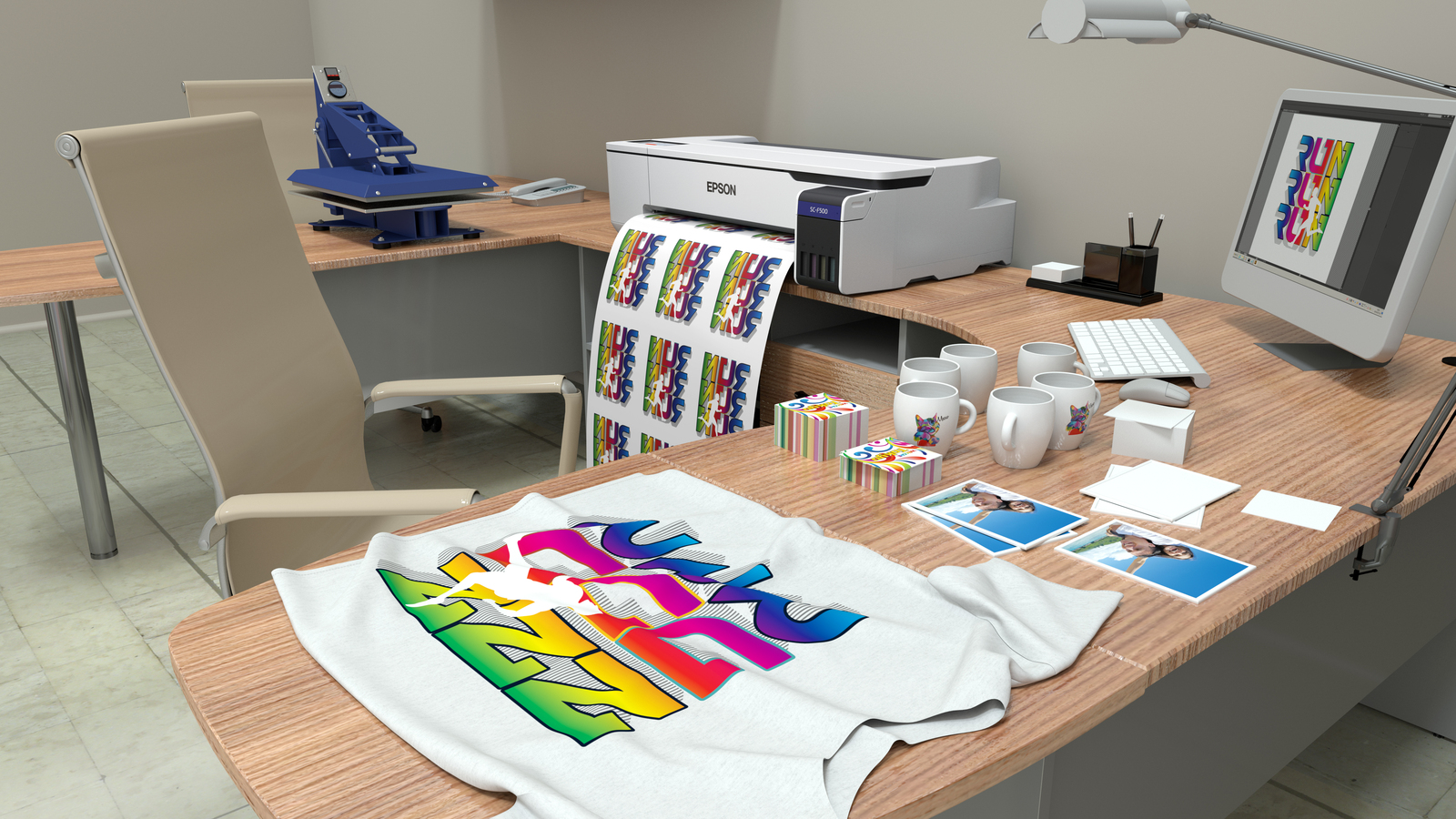

The SC-F560 is designed for an ad-hoc workflow and low production volumes. It features the latest Epson print head technology and has a media handling system that supports operation with sheet and roll stocks. It uses advanced Epson Dye Sublimation ink that is loaded into a small tank system using inexpensive bottles. The print head and ink work together to enable outstanding image quality with fine gradation, a wide gamut, and high colour density. The engine supports production speeds up to 21m2/hr while an integrated auto-cutter enables sheet-based output for operation with a wide variety of inexpensive 3rd party heat presses.
FEATURES AT A GLANCE
Superior Quality – latest Epson PrecisionCore™ (TFP) print head and UltraChrome™ Dye Sub ink for precise imaging with superior colour at resolutions up to 2400x1200dpi, Epson Precision Dot Technology for prints with fine gradation and an expanded gamut with low grain.
Superior Reliability – designed to minimise dust and moisture intrusion, print head has an integrated crash guard, supplied with a comprehensive single-source manufacturer warranty augmented with optional CoverPlus for up to 3 years protection complete with on-site service
Superior Flexibility – supports rolls up to 24" (610mm) and multipage A4/A3 sheet feeder with auto-switching, offers a range of print modes to suit different production and output requirements.
High Productivity – produce an A4 print for rigid sublimation or A1 for fabric in around a minute, tank-based ink system can be refilled while printing is underway; incorporates an auto-cutter.
High Productivity – produce an A3 print for rigid sublimation or A1 for fabric in around a minute, ink tank system can be refilled while printing is underway; incorporates an auto-cutter.

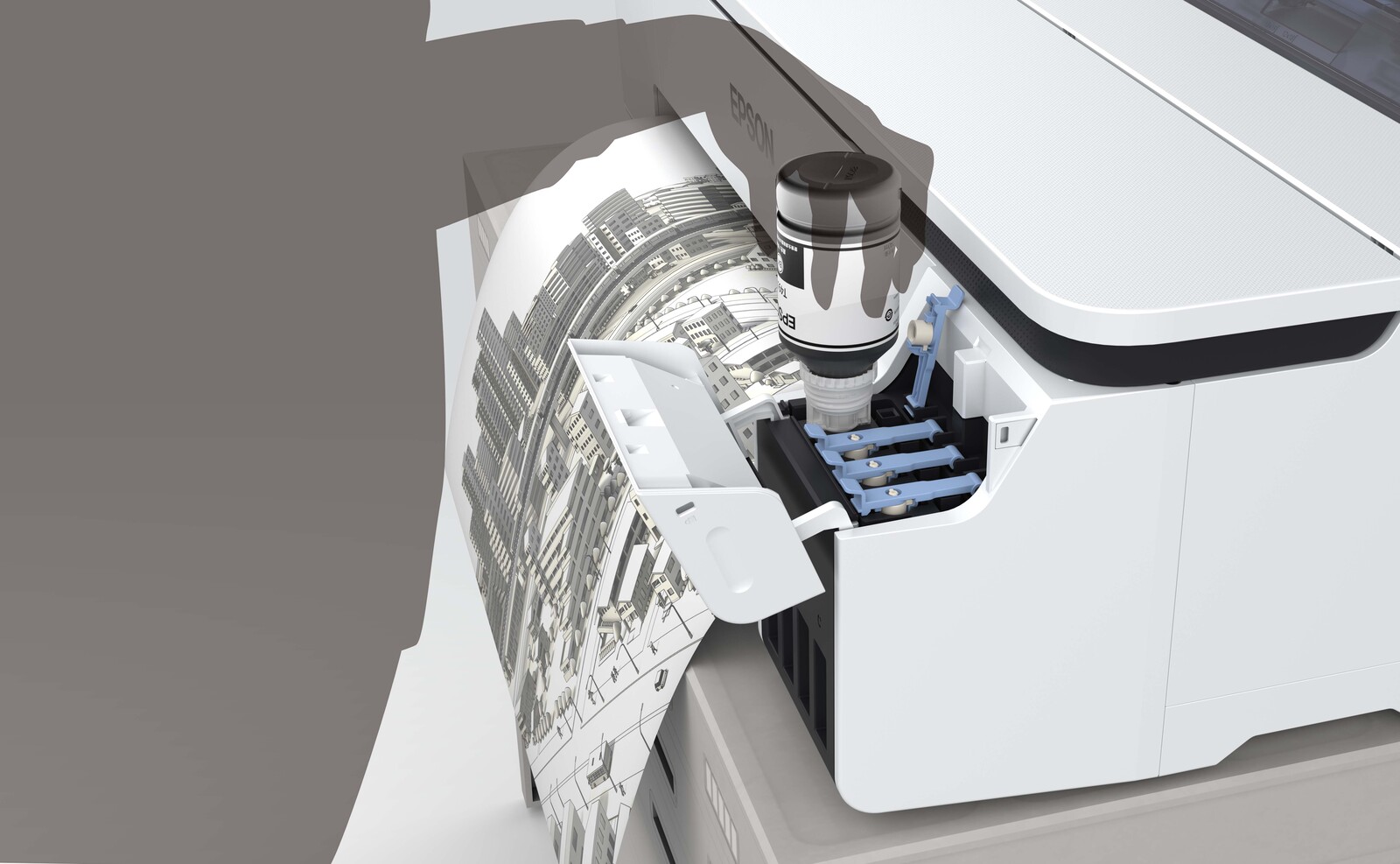

Low Running Costs – low power and ink consumption, ink tanks refilled using inexpensive bottles, ships with Epson Accounting software for job costing via download

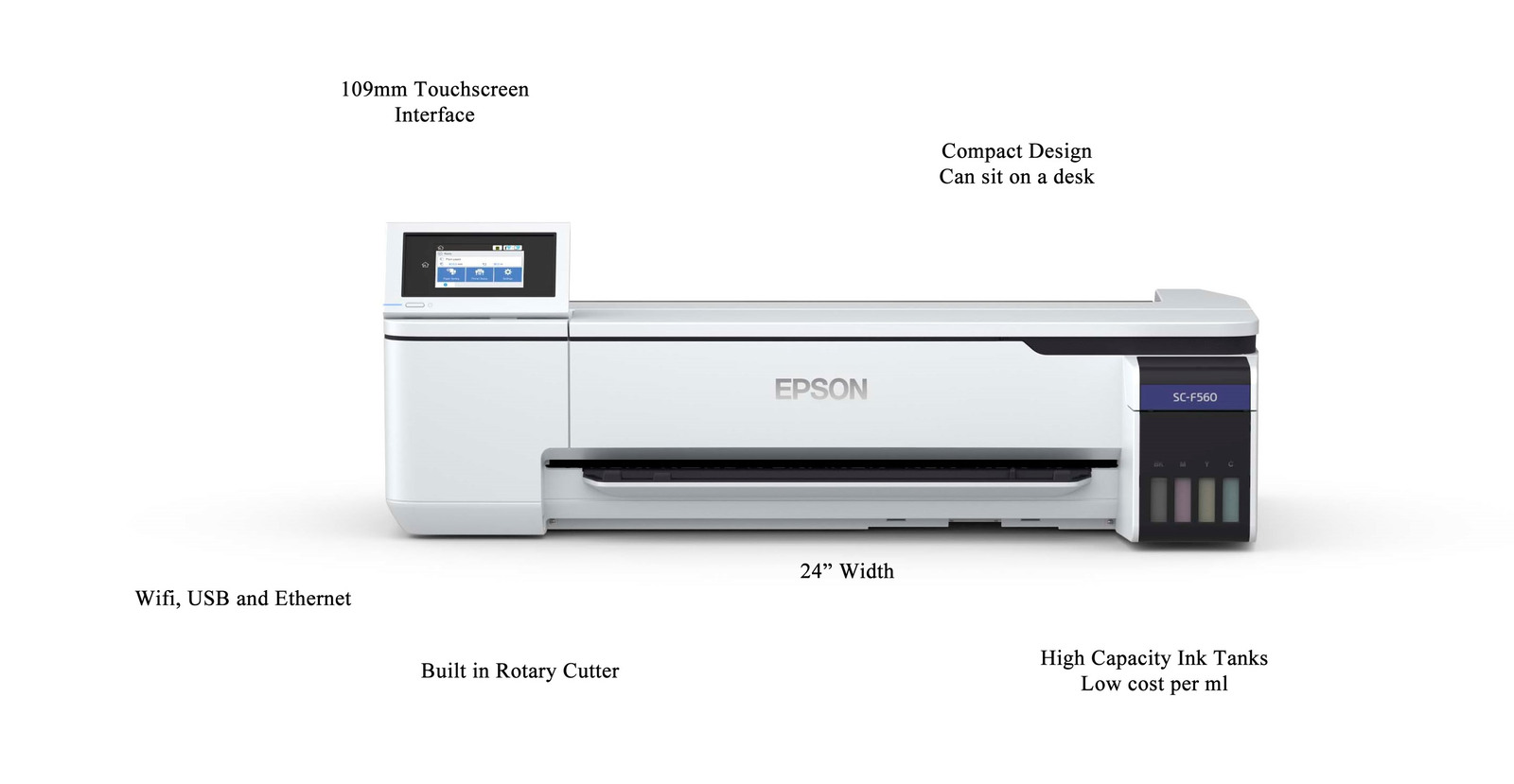

Easy to Install – compact design, desktop mountable, ships with media and over 1L of ink, optional floor stand with media basket, simple setup, flexible WiFi/Ethernet/USB networking

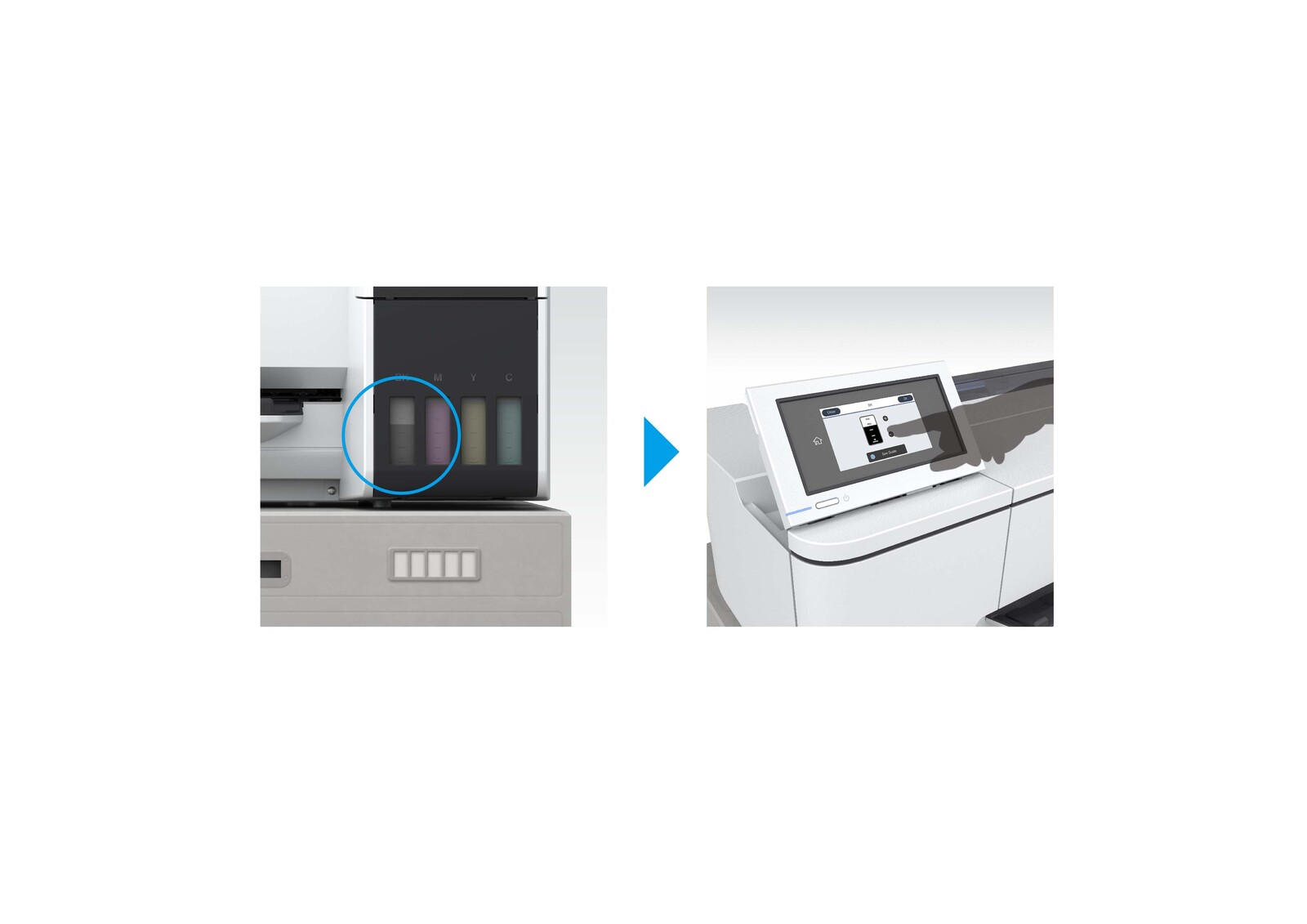

Easy to Operate – all top-loaded consumables, large touch-panel display with in-built help, advanced driver enables operation with standard graphic software, optional high-precision Epson Edge Print software available FREE to registered owners in Australia & New Zealand
Ink cost $0.22 per ml vs Sawgrass Sg800 extended cartridges over $2 per ml.
Comes with 1.1L of ink, in Sawgrass terms thats $2200 of ink
SIZE | |||
---|---|---|---|
Max Media Width | 24 inch wide (610mm) | ||
PRINT TECHNOLOGY | |||
Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment | ||
Print Modes | Uni & Bi-directional | ||
Nozzle Configuration | 800 per colour | ||
Maximum Resolution | 2400 x 1200dpi | ||
INK SYSTEM | |||
Family | Epson Ultrachrome® Dye Sublimation | ||
Type | Dye Sublimation | ||
Colours | C+M+Y+BK | ||
Supply | 4 x 106ml Tank System | ||
Refills |
140ml Bottles |
||
PERFORMANCE | |||
Fast Fabric | 21m2/hr | 62s per A1 (2 pass @ 600x1200dpi) | |
Standard Fabric / Fast Rigid | 7.5m2/hr | 208s per A1 (7 pass @ 1200x1200dpi) | |
Max Quality | 4.5m2/hr | 350s per A1 (12 pass @ 2400x1200dpi) | |
Figures represent print times only based on the test sample image as shown, produced on Epson Multi-Purpose DS Paper using Epson Edge Print. The total throughput time for a particular job will depend on a number of factors including the PC specification, RIP application, workflow configuration, networking, file format / size, image content, paper type, print mode, Auto-Take-Up activation and Heater activation. | |||
MEDIA SUPPORT | |||
Roll Format | Top loaded Single roll spindle, 2" core, 0.05-0.21mm thick, 210-610mm wide, 110mm max diameter, 3Kg max weight | ||
Sheet Format | Top loaded A4-A1 single sheet, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick | ||
Minimum Margins | 3mm top, bottom, left & right (45mm top & 15mm bottom for optimum quality) | ||
Output | Single sheet with auto-cutter and hold on exit Supplied with an A4/A3 output tray |
||
OPERATION | |||
Control Panel | 4.3” Colour LCD touch screen | ||
Interface | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi & WiFi Direct | ||
Memory | 1GB RAM | ||
Included Software | Windows Printer Driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config, Epson Software Updator, LFP Print Plug-in for Office on CD Firmware Updater, EpsonNet Setup Manager & Epson Accounting Tool via web download Epson Edge Print via on-line product registration redemption Mac Printer Driver, EpsonNet Config, Epson Software Updater, Firmware Updater and Software Uninstaller via (Web download) |
||
System Requirements | Windows 10/8.1/8/7(32/64bit) or later (64bit required for Edge Print), Core 2 Duo 3.0GHz or greater Processor 2GB RAM (4GB recommended), 32GB HDD (250GB recommended) Mac OSX 10.7 / OS 10.12 or later, Core2Duo 3.05GHz or greater Processor, 1GB RAM, 32GB HDD (250GB recommended) |
||
ENVIRONMENTAL | |||
Physical (WxHxD) | 970 x 245 x 577mm, 29kg (no consumables, stand, or output tray, ASF closed) | ||
Power Supply | AC 220~240V, 50/60Hz, 1.4A | ||
Operational Temp | 10°~35°C (15°~25°C recommended) | ||
Operational Humidity | 20 to 80% with no condensation (40-60% recommended) | ||
Power Consumption | 22W Operating, 8W Standby, 1.6W Sleep | ||
Operating Noise | 50dB | ||
Recommended Operational Space (WxHxD) | Desktop: 1020 x 395 x 1035mm Floor-standing: 1020 x 1078 x 1000mm (additional space will be required for a heat press) |
||
SHIPPING INFO | |||
Packaging (WxDxH) | Printer: 1106 x 718 x 558mm, 50Kg Ink & Media Pack: 450 x 250 x 250mm, 5Kg |
||

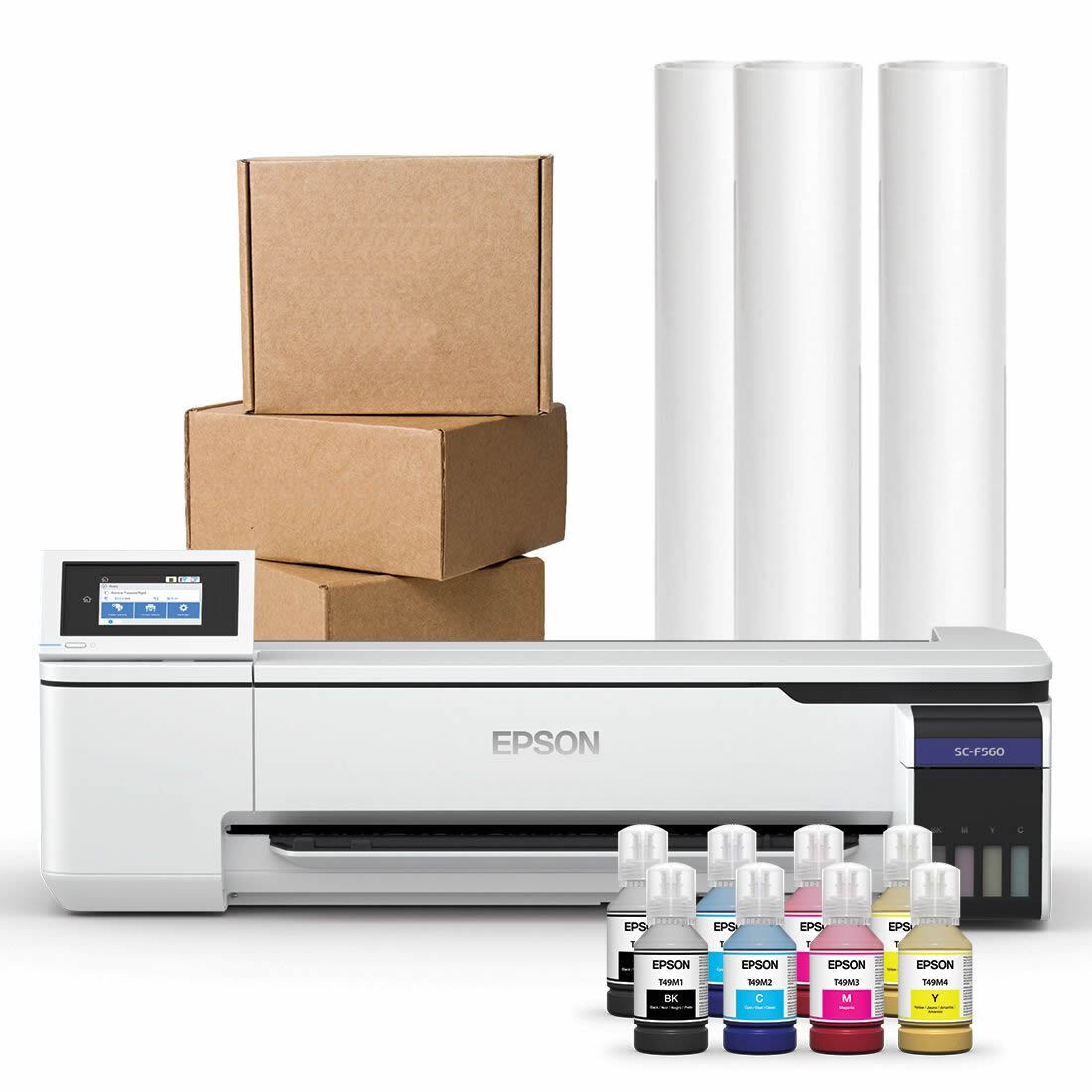

What's in the Box | Printer, 2 x Ink Bottle Set, 2 x Maintenance Tank, Sample Media Pack, Power Cord, Setup Guide, Software & User Manual CD. | ||
Installation & Operation | A heat press will be required to enable production; details on models, features and pricing can be provided by your Epson Authorised Large Format Fabric Dealer. Some assembly and configuration will be required. A set-up guide is included to assist with this process. Two ink sets and 2 maintenance tanks are included with this printer; a proportion of the first set and one of the maintenance tanks will be used to ‘prime’ the printer during initial set-up. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations. Reliable operation requires the printer to be used on a regular basis and not left powered down for extended periods. The printer is not designed for mobile operation and prior to transport it is recommended that ink be removed. Dye sub ink is extremely stable once sublimated however care must be taken prior to this; unopened bottles should be stored in a cool environment away from sunlight and consumed by the best before date printed on the package, ink should be consumed within one month of loading into tanks, opened bottles should be consumed within 6 months, and prints should be sublimated within a week of creation (1~2 days recommended). This printer is designed to operate with specific consumables and be used for ad-hoc / low volume work. It does not suit applications which require continuous &/or high volume production. Please refer to the warranty section for details on operational and mechanical life rating limitations. |
||
CONFIGURATION OPTIONS** | |||
SCF5601YR | Printer with 1Yr Warranty | ||
SCF5603YR | Printer with 1Yr Warranty & 2Yr CoverPlus (3 yrs total cover) | ||
ACCESSORIES & OPTIONS** | |||
C12C933151 | Optional Stand with media bin | ||
C12C933211 | Additional Roll Media Spindle | ||
1YWF560 | 1Yr CoverPlus On-Site Service Pack | ||
2YWF560 | 2Yr CoverPlus On-Site Service Pack | ||
SERVICE & SUPPORT | |||
**Printers is supplied with a comprehensive 1 year warranty that covers labour and all non-consumable parts (including Print Heads but excluding the tank system). It provides for free-on-site repair of equipment located in all metro areas (regional locations will attract an additional travelling charge). Cover can be extended up to a maximum of 3 years through purchase of optional CoverPlus packages either with the printer or up to 365 days subsequent to purchase (discounts apply for bundled purchase). CoverPlus provides additional cover for the tank system while extending the base parts and labour cover. Support and Service is provided via authorised Epson authorised Large Format Fabric Dealers. If you have a problem with a SureColor Fabric printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided on-site free of charge within the period covered by your Warranty and any optional Important: Warranty and CoverPlus may be restricted or denied if the user does not perform maintenance & cleaning as outlined in the user guide &/or advised by Epson Australia or New Zealand, if equipment is modified, used outside of specification &/or with non-Epson consumables. Please refer to the warranty section of this web site for details and contact Epson or one of our Authorised Resellers if you have questions. |
|||
Usage Conditions
Epson products are designed to give highly reliable use and long life when used according to specifications. With any product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device,do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping), do not make modifications to the product, take care with the use of 3rd party consumables, consult Epson if you have any questions or concerns.
SKU | SCF5611Y-KIT |
Shipping Weight | 55.0000kg |
Warranty | 1 Year |
Includes
The Epson SureColor DS series has long offered a superior production platform; developed from the ground up for Dye Sublimation, it combines superior image quality, better colour, lower running costs, and higher reliability, all backed with a comprehensive factory warranty. The F560 takes the concept further with a low-cost package that provides a total imaging solution complete with software, ink and media. Designed for custom merchandise and décor production, it is also suited to photo imaging, hard signage, and even small fabric applications. It features a compact design with flexible media support, and a Continuous Ink Supply System (CISS). Prints are made on paper which transfers (sublimates) via a heat press onto material with a polyester base or polyester pre-treatment.
The SC-F560 is designed for an ad-hoc workflow and low production volumes. It features the latest Epson print head technology and has a media handling system that supports operation with sheet and roll stocks. It uses advanced Epson Dye Sublimation ink that is loaded into a small tank system using inexpensive bottles. The print head and ink work together to enable outstanding image quality with fine gradation, a wide gamut, and high colour density. The engine supports production speeds up to 21m2/hr while an integrated auto-cutter enables sheet-based output for operation with a wide variety of inexpensive 3rd party heat presses.
FEATURES AT A GLANCE
Superior Quality – latest Epson PrecisionCore™ (TFP) print head and UltraChrome™ Dye Sub ink for precise imaging with superior colour at resolutions up to 2400x1200dpi, Epson Precision Dot Technology for prints with fine gradation and an expanded gamut with low grain.
Superior Reliability – designed to minimise dust and moisture intrusion, print head has an integrated crash guard, supplied with a comprehensive single-source manufacturer warranty augmented with optional CoverPlus for up to 3 years protection complete with on-site service
Superior Flexibility – supports rolls up to 24" (610mm) and multipage A4/A3 sheet feeder with auto-switching, offers a range of print modes to suit different production and output requirements.
High Productivity – produce an A4 print for rigid sublimation or A1 for fabric in around a minute, tank-based ink system can be refilled while printing is underway; incorporates an auto-cutter.
High Productivity – produce an A3 print for rigid sublimation or A1 for fabric in around a minute, ink tank system can be refilled while printing is underway; incorporates an auto-cutter.
Low Running Costs – low power and ink consumption, ink tanks refilled using inexpensive bottles, ships with Epson Accounting software for job costing via download
Easy to Install – compact design, desktop mountable, ships with media and over 1L of ink, optional floor stand with media basket, simple setup, flexible WiFi/Ethernet/USB networking
Easy to Operate – all top-loaded consumables, large touch-panel display with in-built help, advanced driver enables operation with standard graphic software, optional high-precision Epson Edge Print software available FREE to registered owners in Australia & New Zealand
Ink cost $0.22 per ml vs Sawgrass Sg800 extended cartridges over $2 per ml.
Comes with 1.1L of ink, in Sawgrass terms thats $2200 of ink
SIZE | |||
---|---|---|---|
Max Media Width | 24 inch wide (610mm) | ||
PRINT TECHNOLOGY | |||
Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment | ||
Print Modes | Uni & Bi-directional | ||
Nozzle Configuration | 800 per colour | ||
Maximum Resolution | 2400 x 1200dpi | ||
INK SYSTEM | |||
Family | Epson Ultrachrome® Dye Sublimation | ||
Type | Dye Sublimation | ||
Colours | C+M+Y+BK | ||
Supply | 4 x 106ml Tank System | ||
Refills |
140ml Bottles |
||
PERFORMANCE | |||
Fast Fabric | 21m2/hr | 62s per A1 (2 pass @ 600x1200dpi) | |
Standard Fabric / Fast Rigid | 7.5m2/hr | 208s per A1 (7 pass @ 1200x1200dpi) | |
Max Quality | 4.5m2/hr | 350s per A1 (12 pass @ 2400x1200dpi) | |
Figures represent print times only based on the test sample image as shown, produced on Epson Multi-Purpose DS Paper using Epson Edge Print. The total throughput time for a particular job will depend on a number of factors including the PC specification, RIP application, workflow configuration, networking, file format / size, image content, paper type, print mode, Auto-Take-Up activation and Heater activation. | |||
MEDIA SUPPORT | |||
Roll Format | Top loaded Single roll spindle, 2" core, 0.05-0.21mm thick, 210-610mm wide, 110mm max diameter, 3Kg max weight | ||
Sheet Format | Top loaded A4-A1 single sheet, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick | ||
Minimum Margins | 3mm top, bottom, left & right (45mm top & 15mm bottom for optimum quality) | ||
Output | Single sheet with auto-cutter and hold on exit Supplied with an A4/A3 output tray |
||
OPERATION | |||
Control Panel | 4.3” Colour LCD touch screen | ||
Interface | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi & WiFi Direct | ||
Memory | 1GB RAM | ||
Included Software | Windows Printer Driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config, Epson Software Updator, LFP Print Plug-in for Office on CD Firmware Updater, EpsonNet Setup Manager & Epson Accounting Tool via web download Epson Edge Print via on-line product registration redemption Mac Printer Driver, EpsonNet Config, Epson Software Updater, Firmware Updater and Software Uninstaller via (Web download) |
||
System Requirements | Windows 10/8.1/8/7(32/64bit) or later (64bit required for Edge Print), Core 2 Duo 3.0GHz or greater Processor 2GB RAM (4GB recommended), 32GB HDD (250GB recommended) Mac OSX 10.7 / OS 10.12 or later, Core2Duo 3.05GHz or greater Processor, 1GB RAM, 32GB HDD (250GB recommended) |
||
ENVIRONMENTAL | |||
Physical (WxHxD) | 970 x 245 x 577mm, 29kg (no consumables, stand, or output tray, ASF closed) | ||
Power Supply | AC 220~240V, 50/60Hz, 1.4A | ||
Operational Temp | 10°~35°C (15°~25°C recommended) | ||
Operational Humidity | 20 to 80% with no condensation (40-60% recommended) | ||
Power Consumption | 22W Operating, 8W Standby, 1.6W Sleep | ||
Operating Noise | 50dB | ||
Recommended Operational Space (WxHxD) | Desktop: 1020 x 395 x 1035mm Floor-standing: 1020 x 1078 x 1000mm (additional space will be required for a heat press) |
||
SHIPPING INFO | |||
Packaging (WxDxH) | Printer: 1106 x 718 x 558mm, 50Kg Ink & Media Pack: 450 x 250 x 250mm, 5Kg |
||
What's in the Box | Printer, 2 x Ink Bottle Set, 2 x Maintenance Tank, Sample Media Pack, Power Cord, Setup Guide, Software & User Manual CD. | ||
Installation & Operation | A heat press will be required to enable production; details on models, features and pricing can be provided by your Epson Authorised Large Format Fabric Dealer. Some assembly and configuration will be required. A set-up guide is included to assist with this process. Two ink sets and 2 maintenance tanks are included with this printer; a proportion of the first set and one of the maintenance tanks will be used to ‘prime’ the printer during initial set-up. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations. Reliable operation requires the printer to be used on a regular basis and not left powered down for extended periods. The printer is not designed for mobile operation and prior to transport it is recommended that ink be removed. Dye sub ink is extremely stable once sublimated however care must be taken prior to this; unopened bottles should be stored in a cool environment away from sunlight and consumed by the best before date printed on the package, ink should be consumed within one month of loading into tanks, opened bottles should be consumed within 6 months, and prints should be sublimated within a week of creation (1~2 days recommended). This printer is designed to operate with specific consumables and be used for ad-hoc / low volume work. It does not suit applications which require continuous &/or high volume production. Please refer to the warranty section for details on operational and mechanical life rating limitations. |
||
CONFIGURATION OPTIONS** | |||
SCF5601YR | Printer with 1Yr Warranty | ||
SCF5603YR | Printer with 1Yr Warranty & 2Yr CoverPlus (3 yrs total cover) | ||
ACCESSORIES & OPTIONS** | |||
C12C933151 | Optional Stand with media bin | ||
C12C933211 | Additional Roll Media Spindle | ||
1YWF560 | 1Yr CoverPlus On-Site Service Pack | ||
2YWF560 | 2Yr CoverPlus On-Site Service Pack | ||
SERVICE & SUPPORT | |||
**Printers is supplied with a comprehensive 1 year warranty that covers labour and all non-consumable parts (including Print Heads but excluding the tank system). It provides for free-on-site repair of equipment located in all metro areas (regional locations will attract an additional travelling charge). Cover can be extended up to a maximum of 3 years through purchase of optional CoverPlus packages either with the printer or up to 365 days subsequent to purchase (discounts apply for bundled purchase). CoverPlus provides additional cover for the tank system while extending the base parts and labour cover. Support and Service is provided via authorised Epson authorised Large Format Fabric Dealers. If you have a problem with a SureColor Fabric printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided on-site free of charge within the period covered by your Warranty and any optional Important: Warranty and CoverPlus may be restricted or denied if the user does not perform maintenance & cleaning as outlined in the user guide &/or advised by Epson Australia or New Zealand, if equipment is modified, used outside of specification &/or with non-Epson consumables. Please refer to the warranty section of this web site for details and contact Epson or one of our Authorised Resellers if you have questions. |
|||
Usage Conditions
Epson products are designed to give highly reliable use and long life when used according to specifications. With any product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device,do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping), do not make modifications to the product, take care with the use of 3rd party consumables, consult Epson if you have any questions or concerns.
SKU | SCF561-PARENT |
Shipping Weight | 55.0000kg |
