Mutoh VC600 Cutter
More infoSecure Payment Methods
Calculate Shipping

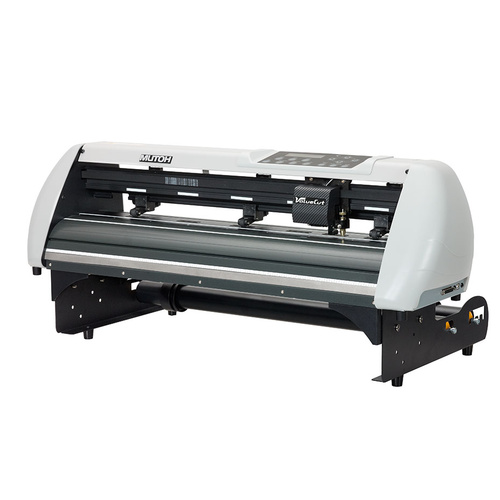

610 mm (24") Vinyl Cutter and Plotter
The ValueCut 600 is a desktop vinyl cutter that can also be optioned with a stand and basket. This cutter can be used together with any printer to cut printed self adhesive vinyl and films in widths up to 24" (610mm) wide; as well as cut-only coloured vinyls.
Print and Cut at the same time for maximum productivity. Traditional all-in-one "print and cut" devices are considerably slower and force you to either print or cut. In a Mutoh workflow, you can do both at the same time.
Every Mutoh cutter ships with stand-alone cutting software, so you can even run cut vinyl lettering jobs, quite separately from your main print worflow.
The ValueCut series gives you the finest cutting quality with superior tracking of around 0.1mm deviation on a 4000 mm track.
ValueCut vinyl cutters are available in three models to match the most common needs:
- ValueCut 600
- ValueCut 1300
- ValueCut 1800
With a Mutoh ValueCut you have all the features and control you need, including our unique job recognition feature that allows you to reliably contour cut your work without accidentally cutting the wrong job! In addition, our multi-segment cutting feature allows you to cut long jobs with superior accuracy.
Plot CAD and Engineering Drawings with any of the ValueCut Cutter Plotters. Simply pop out the blade from the tool carriage and insert the supplied oil pen. The ValueCut range support HP-GL and HP-GL/2 out of the box.
Mutoh’s ValueCut multi-purpose vinyl cutter plotters offer all the functionality required by professional sign makers:
- Contour cutting of stickers printed on your ValueJet printer
- Traditional vinyl cutting for lettering jobs
- Cut through feature for the creation of individual stickers
- Swap out the cutter blade holder with the supplied pen for plotting
- Thermal decals for apparel
The ValueCut 600 features include:
- VC-600 maximum cutting width 610mm
- Connects easily to your PC via USB
- Each machine can cut or plot with supplied pen
- Versatile roll support system allows for perfect tracking
- Contactless loading of pre-printed rolls
- Intuitive job recognition and alignment of contour and cut data
- Multi-segment registration capability for accurate long run cut jobs
- VC-600 sits on any bench or add a stand and a catch basket as an option
- FlexiSTARTER ValueCut Edition Cloud software included - allows you to use the ValueCut cutter as a standalone device
- Includes cutting holder, spare cutter blade, oil ball-point pen, media cutter and cutter pad
| Maximum Media Width (roll & sheet) | 770mm |
|---|---|
| Maximum Sheet-Off Width | 610mm |
| Cutting Range | 50 - 610mm |
| Max. EPOS Measurement Width | 770mm |
| Max. Speed / Acceleration | 1530mm/s (diagonal) /4.2 G diagonal) |
| Cutting Force / Media Thickness | 5 - 600 g / max 1 mm |
| Media Drive Mechanism | Micro-grit friction feed Digital control servo motor |
| Cutting Method | Drag Knife |
| Blade Types Top Angle / Offset | Tungsten Carbide Blades: 25° / 0.25mm 42° / 0.175mm 45° / 0.25mm 60° / 0.25mm 60° / 0.50mm |
| Plotter Function | Yes, with supplied oil pen |
| Graphic Language | HP-GL, HP-GL/2 |
| Stand and Basket | Optional |
| Accessories | Roll-off system for pre-printed rolls |
| Tracking | ± 0.1 mm within a media moving frame of 4 metres |
| Interface / Input Buffer | USB 2.0 / 40 MB |
| Power Requirements | 100 - 240 V AC, 50/60 Hz |
| Power Use | 100W |
| Dimensions | 930(w) x 490(d) x 414(h) mm |
| Weight | 32.7 kg |
| Warranty | 1 Year |
| SKU | MUTOHVC600 |
| Shipping Weight | 35.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.250m |
| Shipping Length | 1.200m |
| Shipping Cubic | 0.075000000m3 |
